Product Code: ET501G
Availability: In Stock
From £14.89(Excluding VAT)

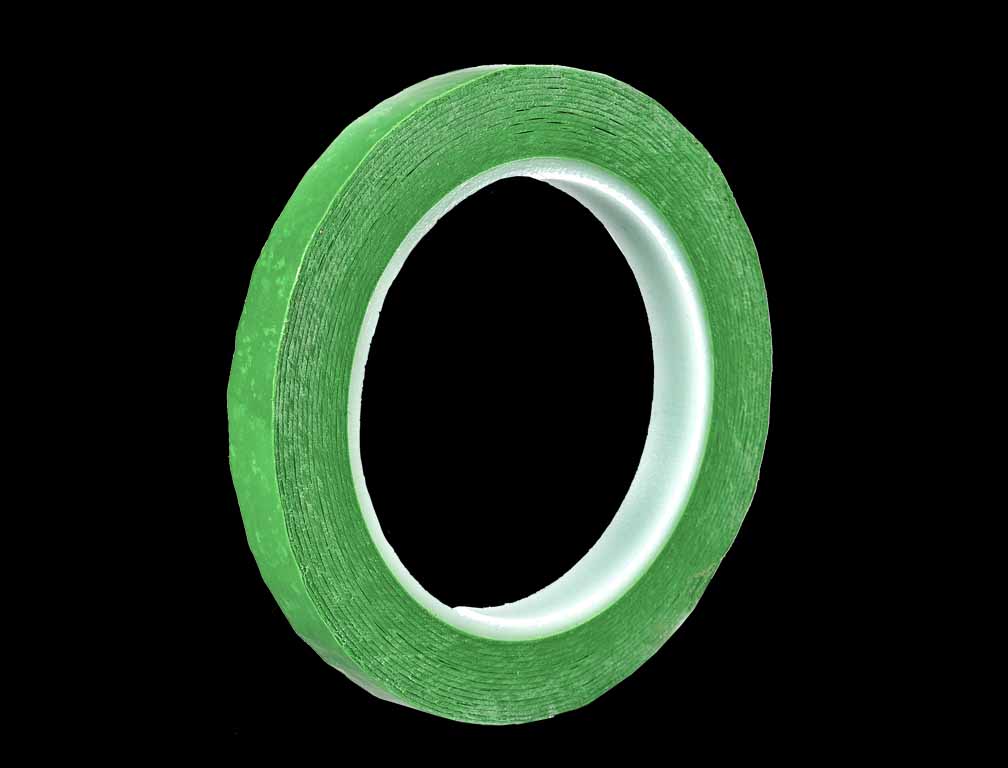

ET501G is a Silicone Free Polyester Tape with Rubber Adhesive, Green in colour.
ET501G is designed to use as a flash mask protection in metal or composite bonding. The polyester backing resists damage from sharp edges. Polyester backings offer low-cost, effective holding materials.
ET501G-D is our dots version of this tape.
| Properties | ||
|---|---|---|
| Base Polyester Film Thickness: | mm | 0.025 |
| Total Thickness: | mm | 0.076 |
| Adhesion to Steel: | N/cm | 1.6 |
| Insulation Class: | °C | 130 (B) |
| Dielectric Strength: | KV | 6.0 |
| Elongation: | % | 100 |
| Temperature Range: | °C | -18 +177 |
| Colour: | Green |
All values shown are approximate and are intended solely as a guide. No responsibility is accepted for their accuracy. It is the user’s responsibility to determine the suitability of the product for the intended application.
Features:
Polyester film backing with an excellent heat resistant rubber adhesive coating. Good release when unwinding from roll for ease of application.
Silicone Free product
High temperature resistance
ET501G offers an economical method of insulation, protection and hold of various materials.
Supply:
Core: 3” (76mm) plastic core.
Width: 610mm max, slit tape 3mm min.
Length: 66m standard.
ET501G is available as slit rolls, and as conformal dots ordered as ET501G-D x the diameter (example- 6mm dia dots should be ordered as ET501G-D6)
Note:
When applying pressure sensitive tape to any surface, be sure that the surface is free from any oil or other surface contaminates such as powder, dust or release agents.
Adhesive performance should be carefully checked when used on substrates containing plasticizers.
Term of validity is one year from manufacturing date when stored under 23±2°C and 60%±10 TH in the original carton.
Note: Elder Engineering (Herts) Ltd does not assume any responsibility or liability for any advice furnished by it, or for the performance or results of any installation or use of the product(s) or of any final product into which the product(s) may be incorporated by the purchaser and/or user. The purchaser and/or user should perform its own tests to determine the suitability and fitness of the product(s) for the particular purpose desired in any given situation. 9.7.12 KW
