Description

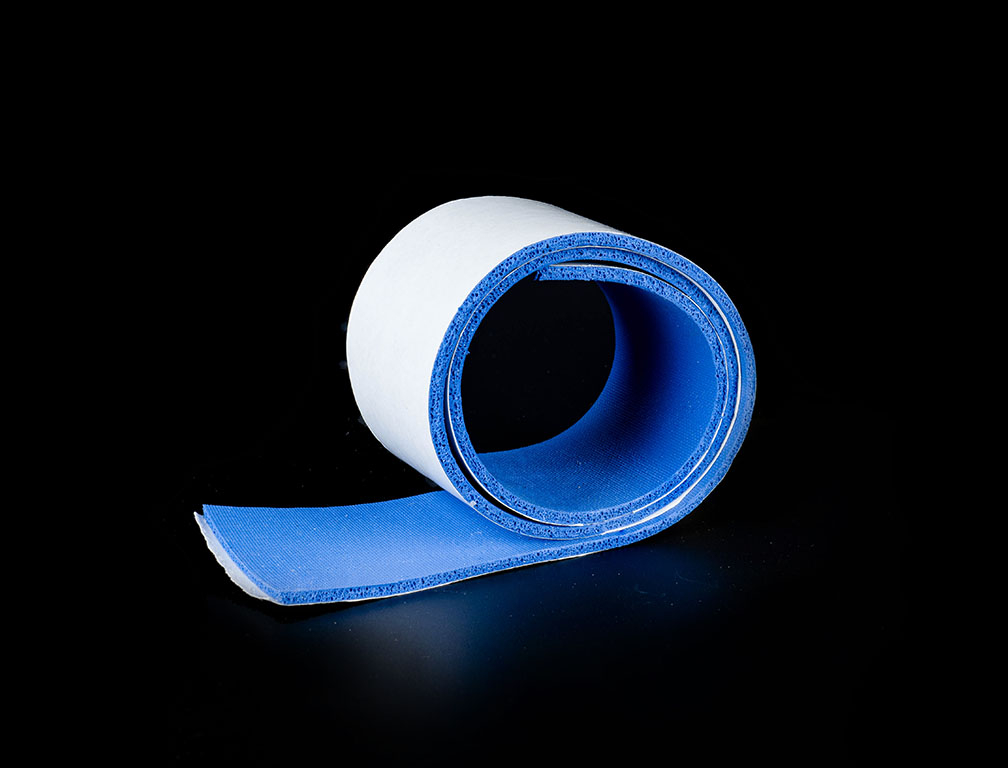

Fluorosilicone Sponge
A medium silicone sponge rubber is a fluorosilicone closed cell sponge that can be used in most gasketing applications. This material is flexible and compressible and designed for use in extreme temperature ranges, with excellent weatherability , compression set resistance, electrical strength and non-stick properties.
It is often the material of choice for applications containing oils, and fluids that would degrade normal elastomers.
Options:
Acrylic or silicone PSA available in sheet format only.
View Datasheet
| Thickness in. mm |
.031 (.79) |
.063 (1.59) |
.094 (2.38) |
.125 (3.18) |
Continuous Roll
36 in. (914mm) |
✓ |
✓ |
✓ |
✓ |
Sheets
36in x 36in. (914mm x 914mm) |
✓ |
✓ |
✓ |
✓ |
Data
*Shelf life is 10 years from date of shipment from the manufacturer for base material when stored in original packaging at temperatures of 21 degrees Celsius and 50% relative humidity (see applicable datasheets for PSA options)
| Typical Properties | Test Method | Typical Value |
|---|
| Compression Deflection: psi (kPa) | ASTM D1056 | 15 (104)
|
| Elongation % | ASTM D412 | 125%
|
| Tensile Strength: psi (kPa) | ASTM D412 | 180 (1245)
|
| Compression Set % | ASTM D1056 | 25%
|
| Density lbs/ft 3 (kg/m3) | ASTM D3574 | 35 (554)
|
| Water Absorption % | ASTM D471 | <5%
|
| Operating Temperature (Celsius) | - | -62 TO +204
|
| Colour | VISUAL | Blue |
| Shelf Life
| | 10 Years* |
All values shown are approximate and are intended solely as a guide. No responsibility is accepted for their accuracy. It is the user’s responsibility to determine the suitability of the product for the intended application.
