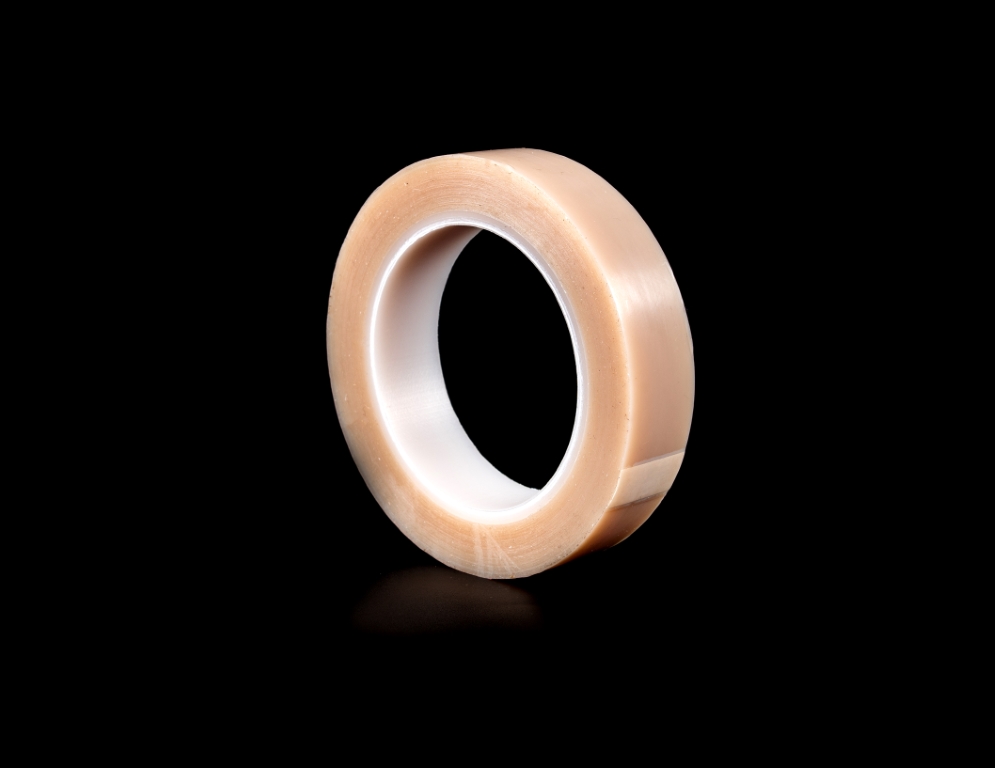

High Modulus PTFE Film (Self wound) – ET53206 – HM350
ET53206 – HM350 are manufactured from modified high-modulus PTFE film coated with high-temperature silicone adhesive.
Available in master log form 33m x 737mm wide. This can be slit from 6.35mm to full width of 737mm
|Backing Material ||Film-PTFE
|Adhesive Type ||Silicone
|Total Thickness mm ||0.089
|Backing Thickness mm ||0.051|
|Adhesive Thickness mm ||0.038|
|Adhesion to Steel N/cm ||2.75|
|Tensile Strength N/cm ||44|
|Elongation (% at break) ||150|
|Dielectric Strength (volts) ||8,000|
|Direct Electrolytic Corr. ||1.0|
|Insulation Class °C (operating Temp) ||180 (-73 to + 260)
||18 months (550 days) From Date of Manufacture.|
All values shown are approximate and are intended solely as a guide. No responsibility is accepted for their accuracy. It is the user’s responsibility to determine the suitability of the product for the intended application.
Features & Benefits
The PTFE film is subjected to a special process that lowers its elongation and increases its breaking strength for easier handling. One side has silicone pressure sensitive adhesive and the other side offers low coefficient of friction PTFE film, which is thin and conformable.
PTFE backing offers excellent high temperature resistance and is chemically inert. This tape construction is weather resistant, stable and non-toxic.
ET53206 – HM350 can be ordered to meet the requirements of MIL-I_23594C Type 1, Class 1.
ET53206 – HM350 are often used as masking during metal bonding, roll covering on plastic extruders, and for fine wire harnesses industry in their repair shops as well as in other markets where thermal spraying is used.
